Spark Plug Autolite APP5224

Spark Plug Autolite APP5224

$0
$18.93 - $18.93
$18.93
$18.93 - $18.93
$18.93

Part will fit your current fitment selection of None

Part will NOT fit your current fitment selection of None

by Autolite
SKU 534|APP5224
Availability:
in stock, ready to be shipped
 More payment options

Autolite® Double Platinum spark plugs have a platinum-to-platinum design that decreases gap erosion, reduces misfires, and provides improved durability*, leading to longer service life. It provides superior performance over copper and platinum plugs primarily used in distributorless ignition system (DIS) engines.

Engineered with a platinum-to-platinum design that prevents gap erosion, extending the life of the spark plug.

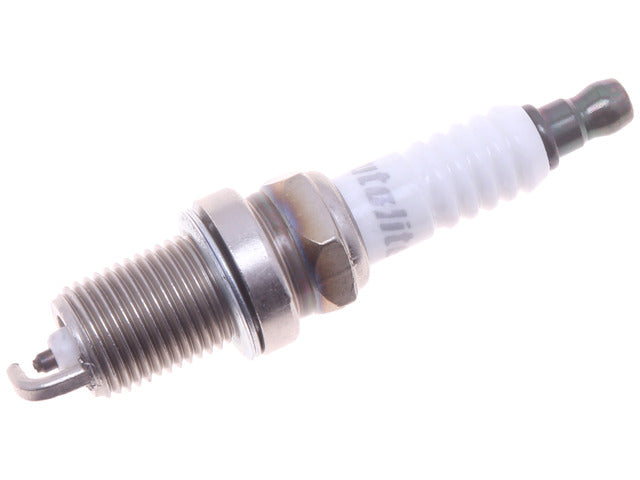

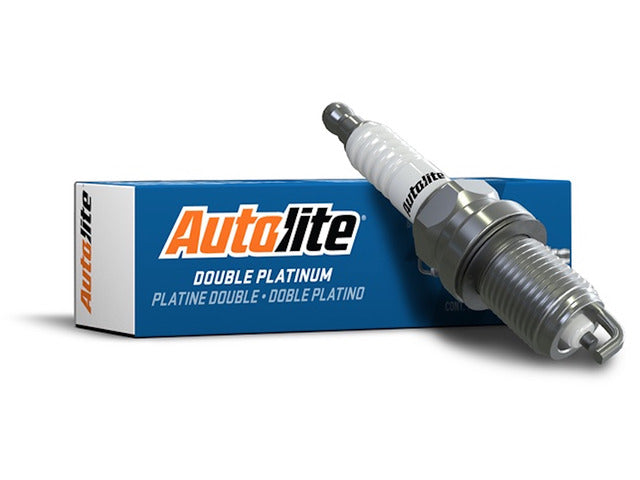

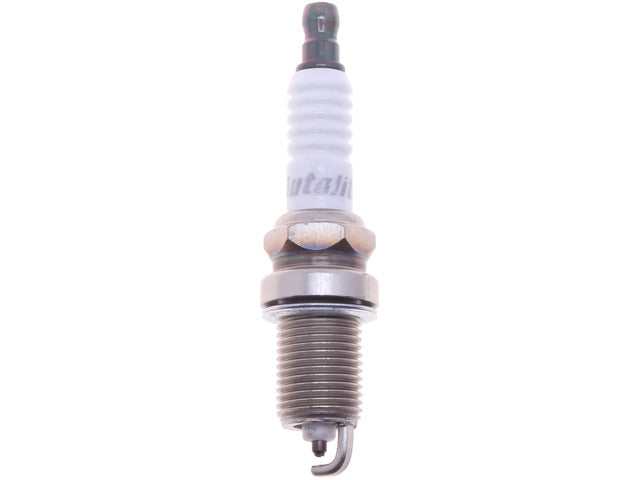

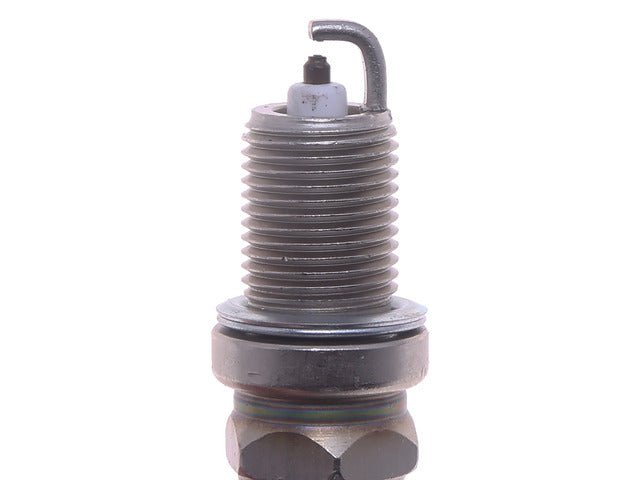

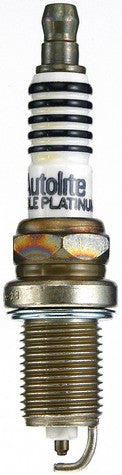

Autolite APP5224 Double Platinum Spark Plug

The yttrium-Enhanced Ground Electrode delivers superior heat transfer that delivers more durability under high temps and pressure for greater life.

Its high alumina ceramic insulator provides optimum thermal conductivity and dielectric strength.

The multi-rib insulator prevents flash-over.

5 year limited warranty

Name Value
Short Description Double Platinum
Hazardous Material No
Minimum Order Quantity 1
Grade Type Performance
Hex Type Hex
Indexed No
Skirt Yes
Center Electrode Insulator Tip Projection (Millimeter) 4.8
Center Electrode Insulator Tip Projection (Inch) 0.187
Insulator Height (Inch) 1.988
Insulator Height (Millimeter) 50.5
Washer Type Crush
Washer(s) Included Yes
Country of Origin Mexico
Weight - Each (Gross Pounds) 0.1150
Weight - Case (Gross Pounds) 5.5200
Height - Each (Inch) 3.3800
Height - Case (Inch) 3.8750
Length - Each (Inch) 1.0000
Length - Case (Inch) 8.9380
Width - Each (Inch) 1.0000
Width - Case (Inch) 7.6250
Center Electrode Design Standard
Center Electrode Projection Long Projection
Center Electrode Tip Material Platinum
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Platinum
Hex Size (Inch) 5/8
Manufacturer Heat Range 9
Pre-Gap Size (Inch) 0.044
Reach (Inch) 0.75
Resistance (Ohm) 4000
Life Cycle Status Available to Order
Seat Type Flat
Thread Diameter (Millimeter) 14
Item Level GTIN 00009100002389
Center Electrode Core Material Copper
Quantity Per Application 4
Electrical Terminal Type Non-Removable Nut
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Insulator Material Ceramic
Pre-Gap Size (Millimeter) 1.1
Reach (Millimeter) 19
Resistor Type Yes
Make ModelYearEngineType
ACURA CL1997L4-2.2LSpark Plug
ACURA CL99-98L4-2.3LSpark Plug
ACURA CL99-97V6-3.0LSpark Plug
ACURA CL03-01V6-3.2LSpark Plug
ACURA CSX11-06L4-2.0LSpark Plug
ACURA EL00-97L4-1.6LSpark Plug
ACURA EL05-01L4-1.7LSpark Plug
ACURA INTEGRA01-92L4-1.8LSpark Plug
ACURA MDX06-01V6-3.5LSpark Plug
ACURA MDX09-07V6-3.7LSpark Plug
ACURA RL08-05V6-3.5LSpark Plug
ACURA RSX06-02L4-2.0LSpark Plug
ACURA TL08-99V6-3.2LSpark Plug
ACURA TL08-07V6-3.5LSpark Plug
ACURA TSX08-04L4-2.4LSpark Plug
AUDI A8 QUATTRO09-05W12-6.0LSpark Plug
BMW 328I1999L6-2.8LSpark Plug
BMW 328IS1999L6-2.8LSpark Plug
BMW 550I10-06V8-4.8LSpark Plug
BMW 650I10-06V8-4.8LSpark Plug
BMW 740I1999V8-4.4LSpark Plug
BMW 740IL1999V8-4.4LSpark Plug
BMW 750I08-06V8-4.8LSpark Plug
BMW 750IL1994V12-5.0LSpark Plug
BMW 750LI08-06V8-4.8LSpark Plug
BMW 760LI2003V12-6.0LSpark Plug
BMW 850CI94-93V12-5.0LSpark Plug
BMW 850CI96-95V12-5.4LSpark Plug
BMW 850CSI1994V12-5.6LSpark Plug
BMW 850I92-91V12-5.0LSpark Plug
BMW M398-97L6-3.2LSpark Plug
BMW X510-04V8-4.8LSpark Plug
BMW Z31999L6-2.5LSpark Plug
BMW Z31999L6-2.8LSpark Plug
BMW Z31999L6-3.2LSpark Plug
CADILLAC CATERA01-97V6-3.0LSpark Plug
CADILLAC CTS04-03V6-3.2LSpark Plug
CHEVROLET AVEO11-09L4-1.6LSpark Plug
CHEVROLET AVEO511-09L4-1.6LSpark Plug
CHEVROLET OPTRA07-04L4-2.0LSpark Plug
CHEVROLET PRIZM99-98L4-1.8LSpark Plug
CHRYSLER 20014-11L4-2.4LSpark Plug
CHRYSLER ASPEN2007V8-4.7LSpark Plug
CHRYSLER INTREPID01-98V6-3.2LSpark Plug
CHRYSLER SEBRING10-07L4-2.4LSpark Plug
DAEWOO LEGANZA02-99L4-2.2LSpark Plug
DODGE AVENGER14-08L4-2.4LSpark Plug
DODGE B150098-97V6-3.9LSpark Plug
DODGE B150098-97V8-5.2LSpark Plug
DODGE B15001998V8-5.9LSpark Plug
DODGE B25001997V6-3.9LSpark Plug
DODGE B250098-97V8-5.2LSpark Plug
DODGE B25001998V8-5.9LSpark Plug
DODGE B350098-97V8-5.2LSpark Plug
DODGE B35001998V8-5.9LSpark Plug
DODGE CALIBER09-07L4-1.8LSpark Plug
DODGE CALIBER12-07L4-2.0LSpark Plug
DODGE CALIBER11-07L4-2.4LSpark Plug
DODGE DAKOTA10-06V6-3.7LSpark Plug
DODGE DAKOTA03-97V6-3.9LSpark Plug
DODGE DAKOTA07-00V8-4.7LSpark Plug
DODGE DAKOTA99-97V8-5.2LSpark Plug
DODGE DAKOTA03-98V8-5.9LSpark Plug
DODGE DURANGO09-06V6-3.7LSpark Plug
DODGE DURANGO99-98V6-3.9LSpark Plug
DODGE DURANGO07-00V8-4.7LSpark Plug
DODGE DURANGO00-98V8-5.2LSpark Plug
DODGE DURANGO03-98V8-5.9LSpark Plug
DODGE INTREPID01-98V6-3.2LSpark Plug
DODGE JOURNEY20-09L4-2.4LSpark Plug
DODGE NITRO11-07V6-3.7LSpark Plug
DODGE RAM 150010-06V6-3.7LSpark Plug
DODGE RAM 150001-97V6-3.9LSpark Plug
DODGE RAM 150007-02V8-4.7LSpark Plug
DODGE RAM 150001-97V8-5.2LSpark Plug
DODGE RAM 150003-98V8-5.9LSpark Plug
DODGE RAM 1500 VAN03-99V6-3.9LSpark Plug
DODGE RAM 1500 VAN03-99V8-5.2LSpark Plug
DODGE RAM 1500 VAN03-99V8-5.9LSpark Plug
DODGE RAM 250003-95V10-8.0LSpark Plug
DODGE RAM 250002-98V8-5.9LSpark Plug
DODGE RAM 2500 VAN2001V6-3.9LSpark Plug
DODGE RAM 2500 VAN03-99V8-5.2LSpark Plug
DODGE RAM 2500 VAN03-99V8-5.9LSpark Plug
DODGE RAM 350003-95V10-8.0LSpark Plug
DODGE RAM 350002-98V8-5.9LSpark Plug
DODGE RAM 3500 VAN03-99V8-5.2LSpark Plug
DODGE RAM 3500 VAN03-99V8-5.9LSpark Plug
FORD PROBE92-89L4-2.2LSpark Plug
FORD PROBE97-93V6-2.5LSpark Plug
HONDA ACCORD97-90L4-2.2LSpark Plug
HONDA ACCORD02-98L4-2.3LSpark Plug
HONDA ACCORD07-03L4-2.4LSpark Plug
HONDA ACCORD97-95V6-2.7LSpark Plug
HONDA ACCORD07-98V6-3.0LSpark Plug
HONDA CIVIC95-92L4-1.5LSpark Plug
HONDA CIVIC00-92L4-1.6LSpark Plug
HONDA CIVIC05-01L4-1.7LSpark Plug
HONDA CIVIC11-06L4-1.8LSpark Plug
HONDA CIVIC11-02L4-2.0LSpark Plug
HONDA CIVIC DEL SOL95-93L4-1.5LSpark Plug
HONDA CIVIC DEL SOL97-93L4-1.6LSpark Plug
HONDA CR-V01-97L4-2.0LSpark Plug
HONDA CR-V09-02L4-2.4LSpark Plug
HONDA ELEMENT11-03L4-2.4LSpark Plug
HONDA FIT14-07L4-1.5LSpark Plug
HONDA ODYSSEY97-95L4-2.2LSpark Plug
HONDA ODYSSEY1998L4-2.3LSpark Plug
HONDA ODYSSEY10-99V6-3.5LSpark Plug
HONDA PILOT08-03V6-3.5LSpark Plug
HONDA PRELUDE91-90L4-2.0LSpark Plug
HONDA PRELUDE91-90L4-2.1LSpark Plug
HONDA PRELUDE01-92L4-2.2LSpark Plug
HONDA PRELUDE96-92L4-2.3LSpark Plug
HONDA RIDGELINE08-06V6-3.5LSpark Plug
ISUZU OASIS97-96L4-2.2LSpark Plug
ISUZU OASIS99-98L4-2.3LSpark Plug
JEEP COMMANDER10-06V6-3.7LSpark Plug
JEEP COMMANDER07-06V8-4.7LSpark Plug
JEEP COMPASS17-07L4-2.0LSpark Plug
JEEP COMPASS17-07L4-2.4LSpark Plug
JEEP GRAND CHEROKEE10-05V6-3.7LSpark Plug
JEEP GRAND CHEROKEE07-99V8-4.7LSpark Plug
JEEP GRAND CHEROKEE1998V8-5.2LSpark Plug
JEEP GRAND CHEROKEE1998V8-5.9LSpark Plug
JEEP LIBERTY12-05V6-3.7LSpark Plug
JEEP PATRIOT17-07L4-2.0LSpark Plug
JEEP PATRIOT17-07L4-2.4LSpark Plug
KIA MAGENTIS10-09V6-2.7LSpark Plug
LAMBORGHINI MURCIELAGO07-01V12-6.2LSpark Plug
MAZDA 62692-88L4-2.2LSpark Plug
MAZDA 62602-93V6-2.5LSpark Plug
MAZDA 92991-88V6-3.0LSpark Plug
MAZDA B260093-89L4-2.6LSpark Plug
MAZDA MILLENIA02-95V6-2.3LSpark Plug
MAZDA MILLENIA02-95V6-2.5LSpark Plug
MAZDA MPV94-89L4-2.6LSpark Plug
MAZDA MPV95-89V6-3.0LSpark Plug
MAZDA MX-692-88L4-2.2LSpark Plug
MAZDA MX-697-93V6-2.5LSpark Plug
MAZDA PROTEGE03-99L4-1.6LSpark Plug
MAZDA PROTEGE2003L4-2.0LSpark Plug
MINI COOPER08-02L4-1.6LSpark Plug
MITSUBISHI MONTERO02-01V6-3.5LSpark Plug
MITSUBISHI MONTERO SPORT03-99V6-3.0LSpark Plug
MITSUBISHI MONTERO SPORT04-01V6-3.5LSpark Plug
MITSUBISHI RAIDER09-06V6-3.7LSpark Plug
MITSUBISHI RAIDER07-06V8-4.7LSpark Plug
NISSAN 240SX90-89L4-2.4LSpark Plug
NISSAN AXXESS95-90L4-2.4LSpark Plug
NISSAN D2194-90L4-2.4LSpark Plug
NISSAN PICKUP97-95L4-2.4LSpark Plug
NISSAN STANZA92-90L4-2.4LSpark Plug
PONTIAC G310-09L4-1.6LSpark Plug
PONTIAC G3 WAVE2009L4-1.6LSpark Plug
PORSCHE CAYENNE05-03V8-4.5LSpark Plug
RAM 150012-11V6-3.7LSpark Plug
RAM DAKOTA2011V6-3.7LSpark Plug
SATURN ASTRA09-08L4-1.8LSpark Plug
SUZUKI FORENZA08-04L4-2.0LSpark Plug
SUZUKI RENO08-06L4-2.0LSpark Plug
TOYOTA 4RUNNER02-96V6-3.4LSpark Plug
TOYOTA COROLLA99-98L4-1.8LSpark Plug
TOYOTA PASEO99-95L4-1.5LSpark Plug
TOYOTA SUPRA1998L6-3.0LSpark Plug
TOYOTA TACOMA04-95V6-3.4LSpark Plug
TOYOTA TERCEL98-95L4-1.5LSpark Plug
TOYOTA TUNDRA04-00V6-3.4LSpark Plug
VOLKSWAGEN BEETLE05-01L4-2.0LSpark Plug
VOLKSWAGEN BEETLE10-06L5-2.5LSpark Plug
VOLKSWAGEN BEETLE14-12L5-2.5LSpark Plug
VOLKSWAGEN CORRADO95-92V6-2.8LSpark Plug
VOLKSWAGEN GOLF06-01L4-2.0LSpark Plug
VOLKSWAGEN GOLF14-10L5-2.5LSpark Plug
VOLKSWAGEN GOLF CITY10-07L4-2.0LSpark Plug
VOLKSWAGEN JETTA05-01L4-2.0LSpark Plug
VOLKSWAGEN JETTA15-11L4-2.0LSpark Plug
VOLKSWAGEN JETTA14-05L5-2.5LSpark Plug
VOLKSWAGEN JETTA03-94V6-2.8LSpark Plug
VOLKSWAGEN JETTA CITY09-07L4-2.0LSpark Plug
VOLKSWAGEN PASSAT14-12L5-2.5LSpark Plug
VOLKSWAGEN PASSAT2003V6-2.8LSpark Plug
VOLKSWAGEN PASSAT97-93V6-2.8LSpark Plug
VOLKSWAGEN PASSAT04-02W8-4.0LSpark Plug
VOLKSWAGEN PHAETON2006W12-6.0LSpark Plug
VOLKSWAGEN RABBIT09-06L5-2.5LSpark Plug
