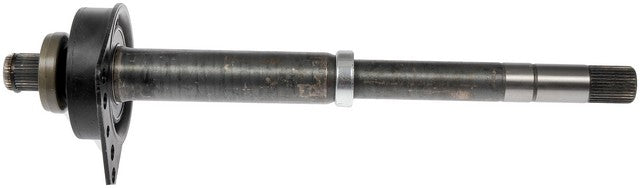

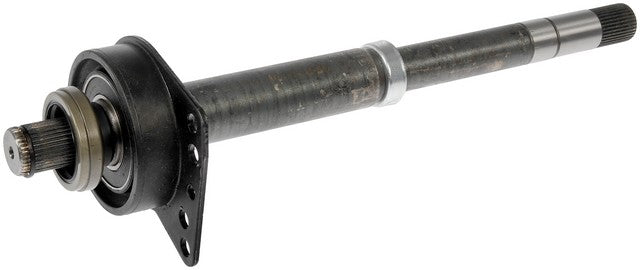

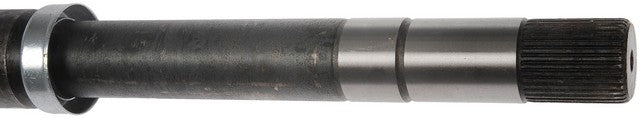

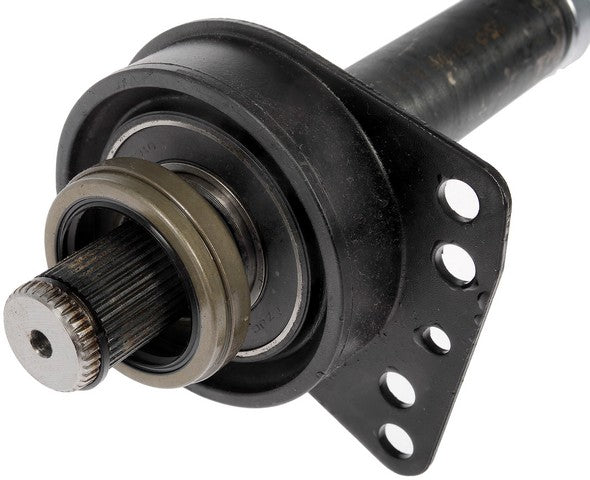

CV Intermediate Shaft Dorman-OE Solutions 630-471

CV Intermediate Shaft Dorman-OE Solutions 630-471

$150.10 - $150.10
$150.10 - $150.10
$150.10
$150.10 - $150.10
$150.10

Part will fit your current fitment selection of None

Part will NOT fit your current fitment selection of None

by Dorman-OE Solutions
Availability:
in stock, ready to be shipped
 More payment options

This replacement CV intermediate shaft is engineered to match the fit and function of the original shaft on specified vehicles. Using quality materials and components, this intermediate shaft is pre-assembled and ready to install.

Este eje intermedio de la junta homocinética sustituto está diseñado para igualar al ajuste y la función del eje original en vehículos específicos. Utilizando materiales y componentes de calidad, este eje intermedio está preensamblado y listo para instalar.

Solución rentable: ofrece la calidad del equipo original a un precio competitivo

Calidad garantizada: esta parte se ha sometido a pruebas de uso en el vehículo para garantizar un ajuste de calidad y una larga vida útil.

Ideal replacement - this intermediate shaft directly replaces the original equipment shaft on specified vehicle years, makes and models

Durable construction - this intermediate shaft is pre-assembled using quality materials and components to ensure easy installation and reliable service

Cost-effective solution - offers original equipment quality at competitive price

Quality tested - this part has undergone try-on testing to ensure a quality fit and long service life

Sustituto ideal: este eje intermedio reemplaza directamente el eje del equipo original de vehículos de años, marcas y modelos específicos.

Construcción duradera: este eje intermedio está preensamblado con materiales y componentes de calidad para garantizar una instalación fácil y un servicio confiable.

Conjunto de eje delantero intermedio

Front Intermediate Axle Shaft Assembly

Name Value
Weight - Each (Gross Pounds) 8.4000
Weight - Case (Gross Pounds) 35.2300
Height - Each (Inch) 5.5100
Height - Case (Inch) 11.8100
Length - Each (Inch) 19.6900
Length - Case (Inch) 20.0800
Width - Each (Inch) 5.5100
Width - Case (Inch) 11.8100
Outside Diameter (Inch) 1.078
Short Description Frt Inter Axle Shaft
Hazardous Material No
Compressed Length (Inch) 17.187
Extended Length (Inch) 17.187
Material Acero
Material Steel
Color Gris
Color Gray
Contenidos del paquete cojinete
Contenidos del paquete clip de retención
Contenidos del paquete Eje del eje
Package Contents Bearing
Package Contents Retainer Clip
Package Contents Axle Shaft
Mounting Hardware Included Non
Mounting Hardware Included No
Dynamic Damper Attached Non
Dynamic Damper Attached No
Life Cycle Status Available to Order
Inboard End Type Estriado
Inboard End Type Splined
Item Level GTIN 00889245567307
Outboard End Type Splined
Outboard End Type Estriado
Inboard Flange Mount Hole Quantity 0
Outboard Flange Mount Hole Quantity 0
Inboard End Spline Quantity 35
Outboard End Spline Quantity 35
Country of Origin China
Make ModelYearEngineType
FORD ESCAPE12-09AllCV Intermediate Shaft - FRONT
MERCURY MARINER11-09AllCV Intermediate Shaft - FRONT
