Leaf Spring Assembly Dorman-OE Solutions 34-1377

Sold out
Original price $0
Original price $322.25 - Original price $322.25
Original price
Current price $322.25
$322.25 - $322.25
Current price $322.25

Part will fit your current fitment selection of None

Part will NOT fit your current fitment selection of None

SKU 591|341377
Availability:
Out of stock
 More payment options

Properly functioning leaf springs hold the weight and payload of a vehicle or trailer and are essential to suspension performance and passenger comfort. Check the product attributes to select the right leaf spring for your application.

Las hojas de muelle que funcionan de manera adecuada sostienen el peso y la carga de un vehículo o remolque y son esenciales para el rendimiento de la suspensión y la comodidad de los pasajeros. Verifique los atributos del producto para seleccionar la hoja de muelle adecuada para su aplicación.

Direct replacement - these leaf springs are designed to match the fit and function of the original leaf springs on specific vehicles or trailers

Ideal solution - seamlessly replaces leaf springs damaged by overloading, collision, cracking or corrosion, or are due for replacement

Durable construction - made from quality materials to strict specifications to ensure reliable performance and long service life

Trustworthy quality - engineered, manufactured and supported by the premier aftermarket leaf spring provider in the USA

Sustituto directo: estas hojas de muelle están diseñadas para empatar en ajuste y función con las hojas de muelle originales en vehículos o remolques especificados

Solución ideal: reemplaza sin problemas las hojas de muelle dañadas por sobrecarga, colisión, grietas o corrosión, o que se deben reemplazar

Construcción duradera: hecho de materiales de calidad según especificaciones estrictas para garantizar un rendimiento confiable y una larga vida útil

Calidad confiable: diseñado, fabricado y respaldado por el principal proveedor de hojas de muelle del mercado de repuestos de automóvil en los Estados Unidos

Hoja de muelle de la suspensión

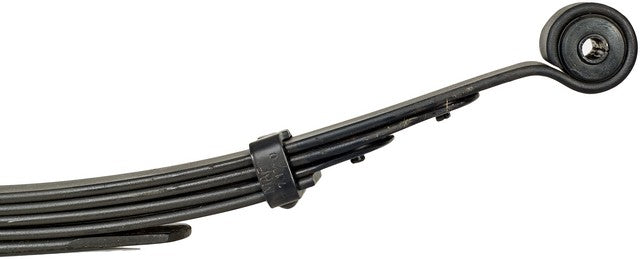

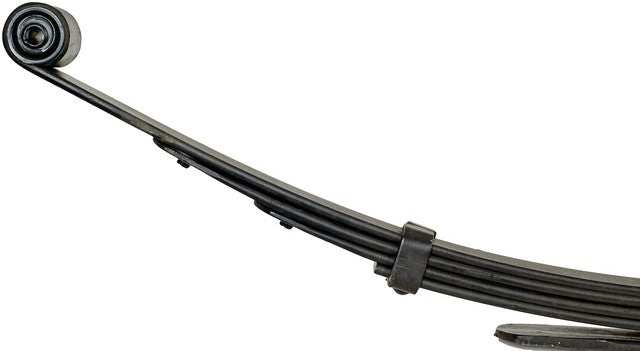

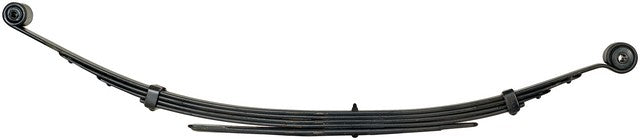

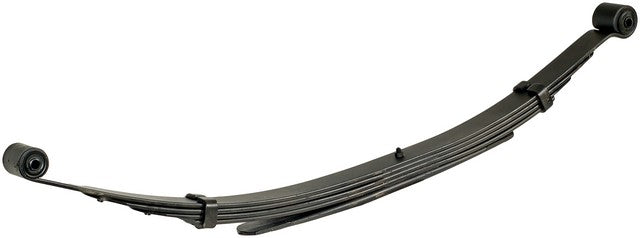

Suspension Leaf Spring

Name Value
Bushing Color Negro
Bushing Color Black
Bushings Included Oui
Bushings Included
Bushings Included Yes
Suspension Grade Type Reemplazo estándar
Suspension Grade Type Standard
Helper Spring Non
Helper Spring No
Axle Modification Needed Non
Axle Modification Needed No
Spring Research Institute Number 34-1377
End 1 Attachment Type Ojo de Berlín
End 1 Attachment Type Berlin Eye
End 2 Attachment Type Ojo hacia arriba
End 2 Attachment Type Up Turned Eye
Leaf Quantity 5
Axle Orientation Arrière
Axle Orientation Trasero
Axle Orientation Rear
Weight - Each (Gross Pounds) 50.2500
Height - Each (Inch) 6.0000
Length - Each (Inch) 53.5000
Width - Each (Inch) 2.5000
Length Axis 1 (Inch) 23
Short Description Leaf Spring
Hazardous Material No
Length Axis 2 (Inch) 23
Leaf Spring Arch Length (Inch) 6
Leaf Width (Inch) 2.5
Pack Thickness (Inch) 1.962
Load Rate (Pound) 2100
Length B (Inch) 30.5 in
Longitud B (Inch) 30.5 in
Life Cycle Status Available to Order
Material Acero
Material Steel
Item Level GTIN 00194883288201
Color Noir
Color Negro
Color Black
Contenidos del paquete 1 hoja de muelle
Package Contents 1 Leaf Spring
Mounting Hardware Included Non
Mounting Hardware Included No
Bushing Color Noir
Make ModelYearEngineType
DODGE B15001998AllLeaf Spring Assembly - REAR
DODGE B25001998AllLeaf Spring Assembly - REAR
DODGE B35001998AllLeaf Spring Assembly - REAR
DODGE RAM 1500 VAN03-99AllLeaf Spring Assembly - REAR
DODGE RAM 2500 VAN03-99AllLeaf Spring Assembly - REAR
DODGE RAM 3500 VAN03-99AllLeaf Spring Assembly - REAR
